Syntax MD1 Three Phase 100AMP HDPE Portable Distribution Box IP67 Waterproof with Differential Protection

Product Categories
ZHEJIANG HANBEN ELECTRICAL CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Syntax MD1 Three Phase 100AMP HDPE Portable Distribution Box IP67 Waterproof with Differential Protection

Brand Name : Syntax

Model Number : MD1

Certification : EN60439-4, IEC60529, SAA

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 3000 sets/month

Delivery Time : 15 working days

Packaging Details : Packed by paper carton

Material : HDPE / PE (polyethylene, a kind of plastic)

Dimension : 430x380x460mm

IP Protection Rate : IP67 Waterproof

Color : Black

Contact Now

Syntax MD1 Three Phase 100AMP HDPE Portable Distribution Panel
IP67 Waterproof with Differential Protection - 430x380x460mm
Technical Specifications
Attribute Value
Box Model MD1 Portable Distribution Board IP67
Color Black
Dimensions 430 × 380 × 460 mm
Incoming Main Switch No incoming, no protection
Outgoing Circuit 1 2 × 5P 32A 400V IP67 Panel Mounted Sockets, Protected by 2 × 4P 32A 30mA RCBOs
Outgoing Circuit 2 4 × 3P 16A 220V IP44 Panel Mounted Sockets, Protected by 4 × 1P+N 16A 30mA RCBOs
Component Brands Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT

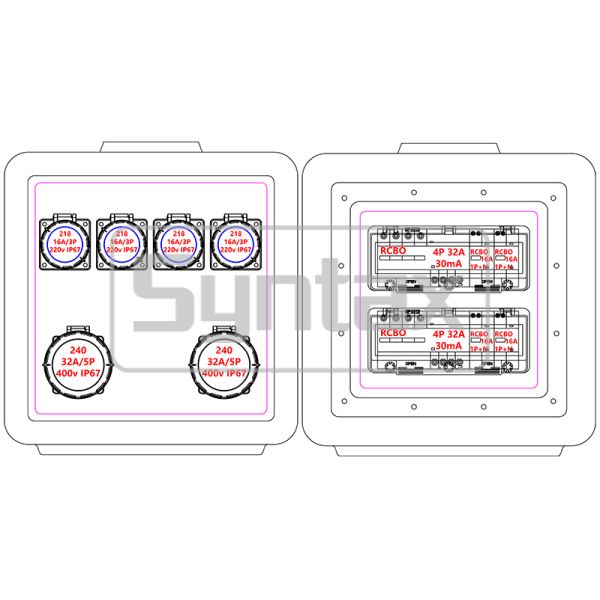

Product Drawings
Syntax MD1 Three Phase 100AMP HDPE Portable Distribution Box IP67 Waterproof with Differential Protection Syntax MD1 Three Phase 100AMP HDPE Portable Distribution Box IP67 Waterproof with Differential Protection
Key Features & Benefits
  • Designed to EN 60439-4 and IEC 60529 standards
  • Waterproof and shockproof design with IP67 rating
  • Available in Black, Orange, and Yellow colors
  • Constructed from durable HDPE/PE polyethylene material
  • Stackable design for efficient storage and stability
  • Operating temperature range: -20℃ to +75℃
  • Compact dimensions: 430mm × 380mm × 460mm
Product Advantages
  • Quick assembly and dismantling
  • Safe and reliable electrical connections
  • Reusable components for cost efficiency
  • Suitable for indoor and outdoor applications
  • Robust construction for demanding environments
  • Easy handling and system management
  • Integrated feet for secure stacking
  • 24-month warranty on all parts and manufacturing defects
Custom Specification: This three-phase temporary distribution board is specially designed for stage temporary power applications. Featuring no incoming plug or protection, with outgoing circuits including 2 × 32A/5P 400V IP67 sockets protected by 4P 32A 30mA RCBOs and 4 × 16A/3P 220V IP67 sockets protected by 1P+N 16A RCBOs. Constructed from PE material with IP67 waterproof rating, ideal for sports events including swimming competitions.
Industry Applications
  • Tunnel construction and drilling rigs
  • Marine, railway, and military operations
  • Industrial and construction sites
  • Event technology and large-scale venues
  • Mining, quarry, and chemical industries
  • Airports and container terminals
  • Public infrastructure projects
  • Communication and electronic industries
  • Food processing and automotive manufacturing
  • Music, sports, and entertainment events
  • Civil infrastructure including hospitals and schools
  • Electric vehicle charging systems
Customization Options
We offer bespoke power distribution solutions tailored to your specific requirements. Our capabilities include CNC perforation for custom device installation, pre-wiring of components, and IP67 waterproof lockable hinged windows for enhanced protection.
Material Quality
Our distribution boxes utilize heavy-duty PE material known for its strength, toughness, and durability. This material offers performance characteristics similar to rubber while maintaining the structural integrity required for industrial applications.
